K Series 3-4 Ton Diesel Counterbalanced Forklift Truck| Heavy Load Lifting Equipment, Forklift Manufacturer, China Forklift Supplier

Rated Capacity: 3000kg / 3500kg / 4000kg
Power Type: Diesel Engine
Maximum Lift Height: 3000mm
Engine Power: 36.8kW
Travel Speed: 18-19km/h
Fork Size: 45×122×1220mm

Key attributes
Price	Action
Fork Length	1150mm
Fork Width	550mm
Loading Capacity	2.0T/3T/5T

Choose quantity

Request A Quote

Key attributes

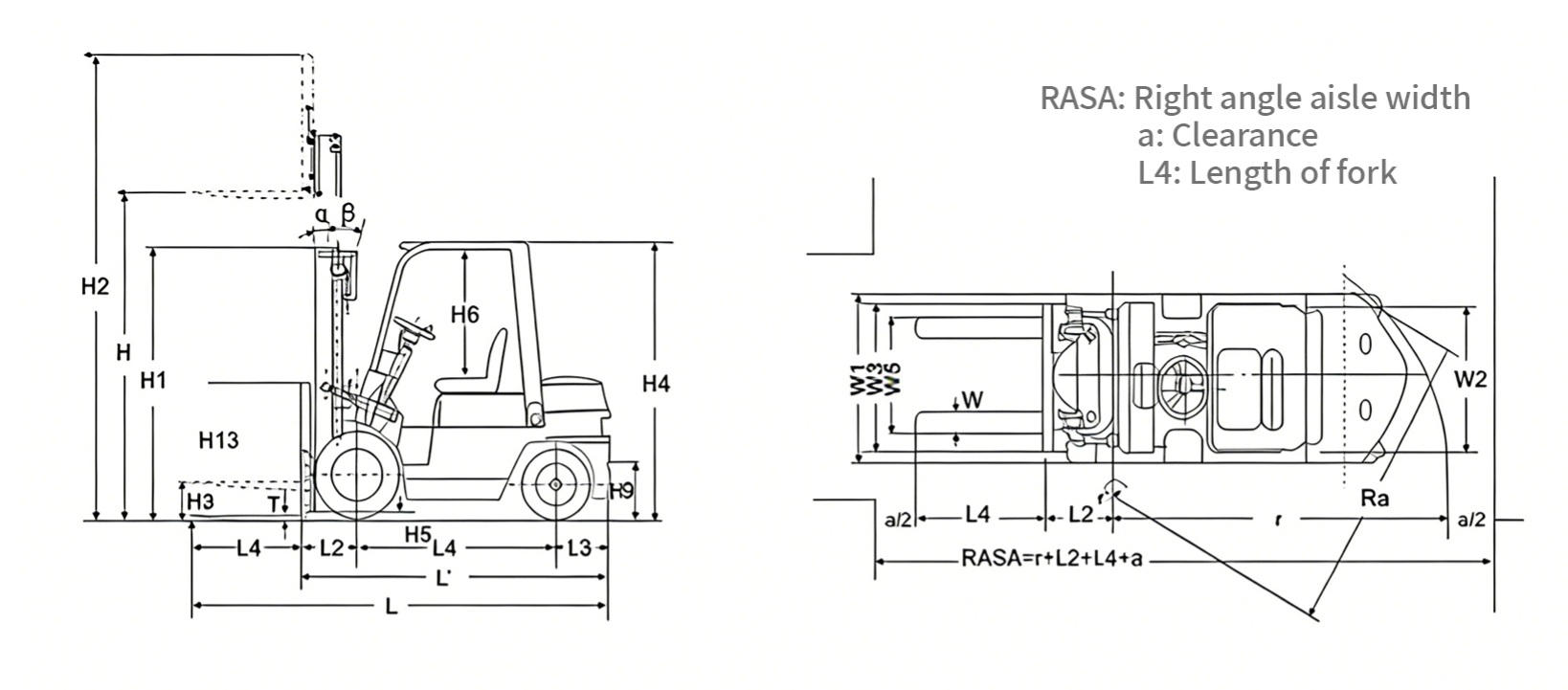

Parameter	K Series · 3.0 – 4.0 t Diesel Forklifts
Parameter	CPC30	CPD30	CPC35	CPD35	CPC35 Ext. WB	CPD35 Ext. WB	CPC35 Adj. WB	CPD35 Adj. WB	CPC40	CPD40
Manufacturer / Type	3.0T IC Counterbalanced		3.5T IC Counterbalanced		3.5T Ext. Wheelbase		3.5T Adj. Wheelbase		4.0T IC Counterbalanced
Power Type	Diesel
Rated Capacity (kg)	3000	3000	3500	3500	3500	3500	3500	3500	4000	4000
Load Center (mm)	500
Driving Mode	Sit-on Type
Max. Lifting Height (mm)	3000
Mast Height (lowered/extended) (mm)	2070 / 4220		2070 / 4220		2070 / 4220		2070 / 4220		2150 / 4220
Free Lift (mm)	30
Overall Height (OHG) (mm)	2090
Min. Ground Clearance (mm)	135						148
Seat to OHG (mm)	1000
Traction Coupling Height (mm)	310
Backrest Height (mm)	1215
Overall Length (with/without forks) (mm)	3913 / 2693		3913 / 2693		4063 / 2843		2963 / 2743		4063 / 2843
Wheelbase (mm)	1700		1700		1850		Adjustable		1850
Front / Rear Overhang (mm)	460 / 533								460 / 533
Overall Width (mm)	1225								1290
Track (front/rear) (mm)	1000 / 970
Fork Spacing (max/min) (mm)	1060 / 244
Min. Turning Radius (mm)	2390		2390		2550		2440		2550
Mast Tilt (fwd/bwd) (°)	6° / 12°
Fork Size (mm)	45×122×1220						50×125×1220
Travel Speed (laden/unladen) (km/h)	18 / 19
Lifting Speed (laden/unladen) (mm/s)	440 / 480
Lowering Speed (laden/unladen) (mm/s)	440 / 430
Max. Drawbar Pull (laden/unladen) (kN)	17.5/13.4	19.5/15.5	18.1/13.4	19.6/16.2	19.6/16.2	19.6/16.2	18.1/13.4	19.6/16.2	18.1/13.4	19.6/16.2
Max. Gradeability (laden/unladen) (%)	15 / 20
Service Mass (kg)	4230	4230	4530	4530	4530	4530	4730	4730	4880	4880
Wheels (front/rear) / Tyre	2×/2 · Pneumatic
Tyre Size (front/rear)	28×9-15-14PR / 650-10-10PR						250-15-14PR / 650-10-10PR
Brakes (service/parking)	Mechanical pedal / Mechanical hand lever
Battery (V/Ah)	12 / 80
Engine Model	Quanchai 4K3-017	Xinchai 4D29V41	Quanchai 4K3-017	Xinchai 4D29V41	Quanchai 4K3-017	Xinchai 4D29V41	Quanchai 4K3-017	Xinchai 4D29V41	Quanchai 4K3-017	Xinchai 4D29V41
Rated Power / Torque	36.8kW/2500rpm 157N·m/1800rpm		36.8kW/2500rpm 156N·m/1700-1900		36.8kW/2500rpm 157N·m/1800rpm		36.8kW/2500rpm 156N·m/1700-1900		36.8kW/2500rpm 157N·m/1800rpm
Cylinders / Displacement / Fuel Tank	4-93×105 · 2.67L · 50L
Emission Standard	Beijing IV / National IV / CHINA IV
Transmission (fwd/bwd)	1-1 Power Shift (TM) / 2-2 Manual Shift (TM)

Description

K Series Internal Combustion Forklift

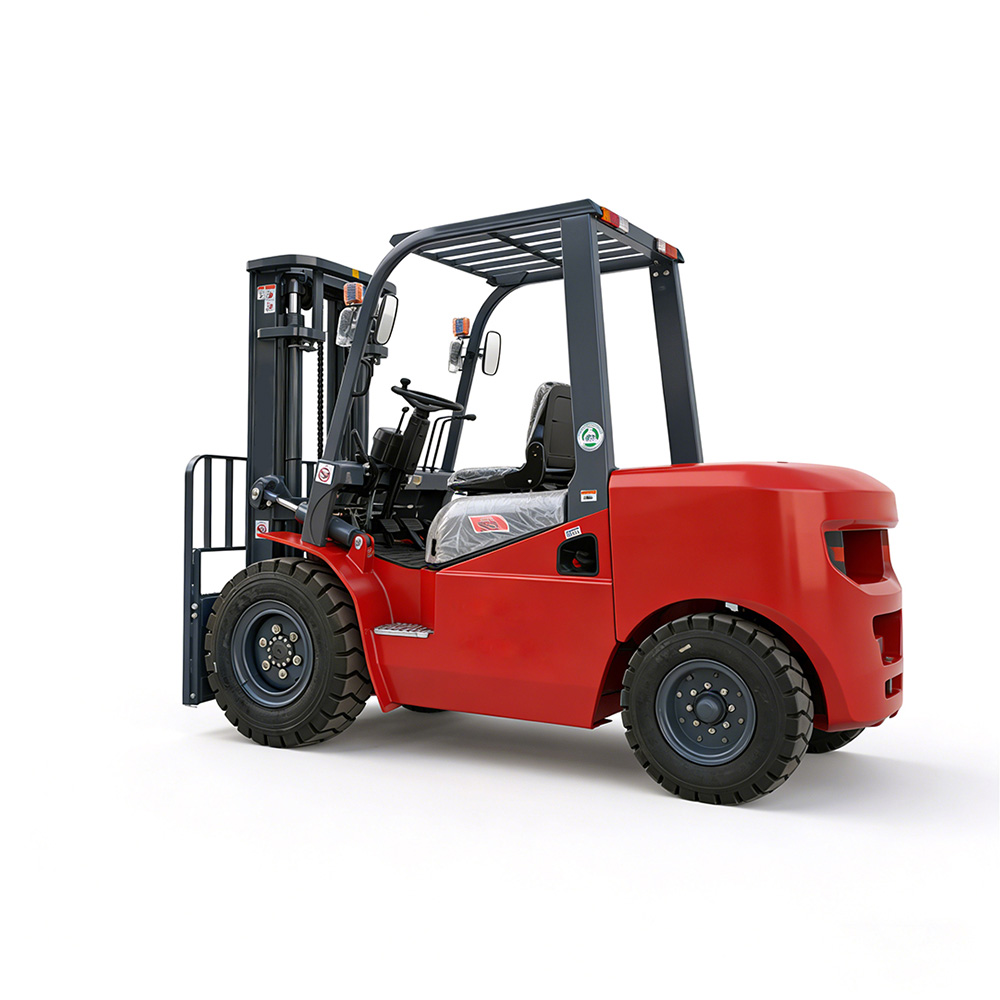

K Series 3-4 Ton Diesel Counterbalanced Forklift Truck

The K Series 3-4 Ton Internal Combustion Counterbalanced Forklift Truck is a high-performance industrial forklift designed for heavy-duty material handling applications in warehouses, factories, logistics centers, ports, construction sites, and manufacturing facilities. Available in 3 ton, 3.5 ton, and 4 ton capacities, this diesel-powered forklift provides excellent lifting performance, strong traction, and reliable operation in demanding working environments.

Equipped with a high-efficiency diesel engine, robust mast structure, and durable pneumatic tires, the K Series forklift delivers outstanding stability when handling heavy loads. The counterbalanced design eliminates the need for front support legs, allowing flexible pallet handling from different directions and improving operational efficiency.

The ergonomic sit-on operator design provides comfortable driving experience during long working hours. With advanced hydraulic lifting technology, excellent maneuverability, and strong climbing ability, this forklift is an ideal solution for continuous material transportation and loading operations.

Features

Heavy Duty Performance

Designed for 3000kg-4000kg load handling with excellent stability and continuous working capability.

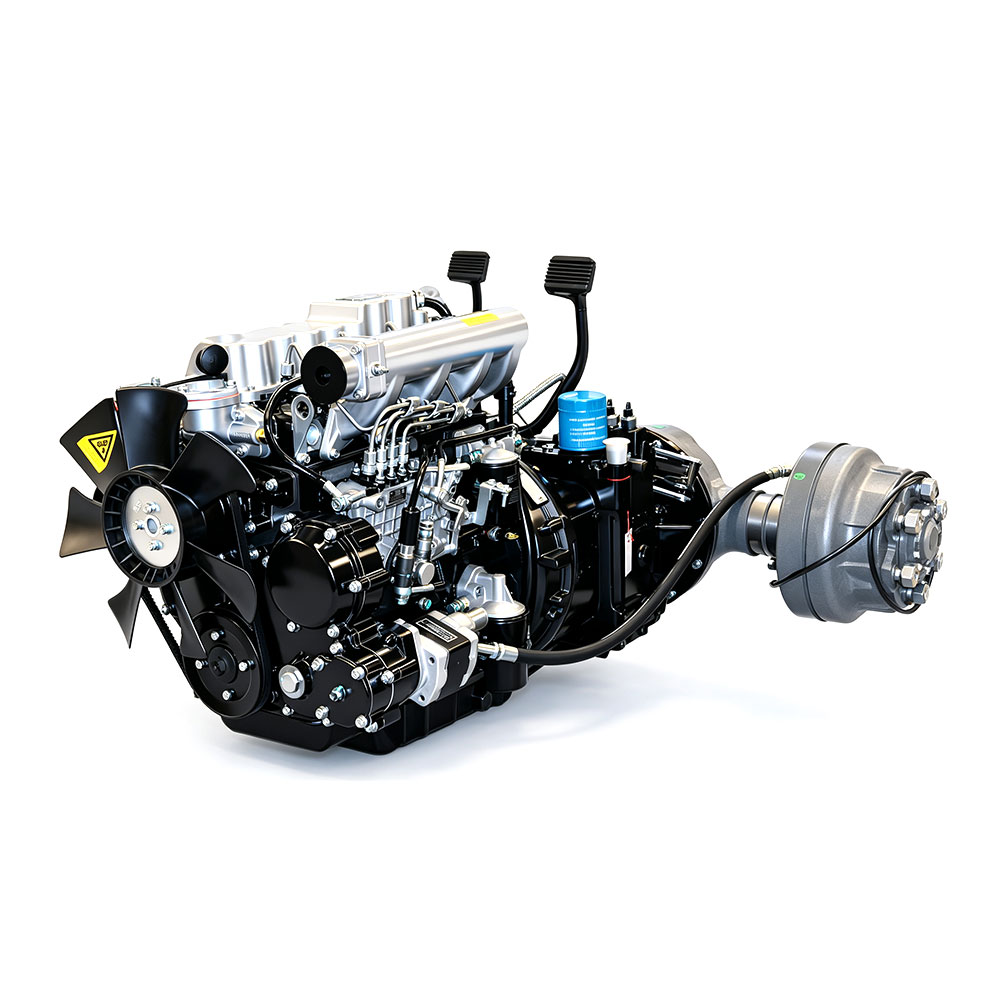

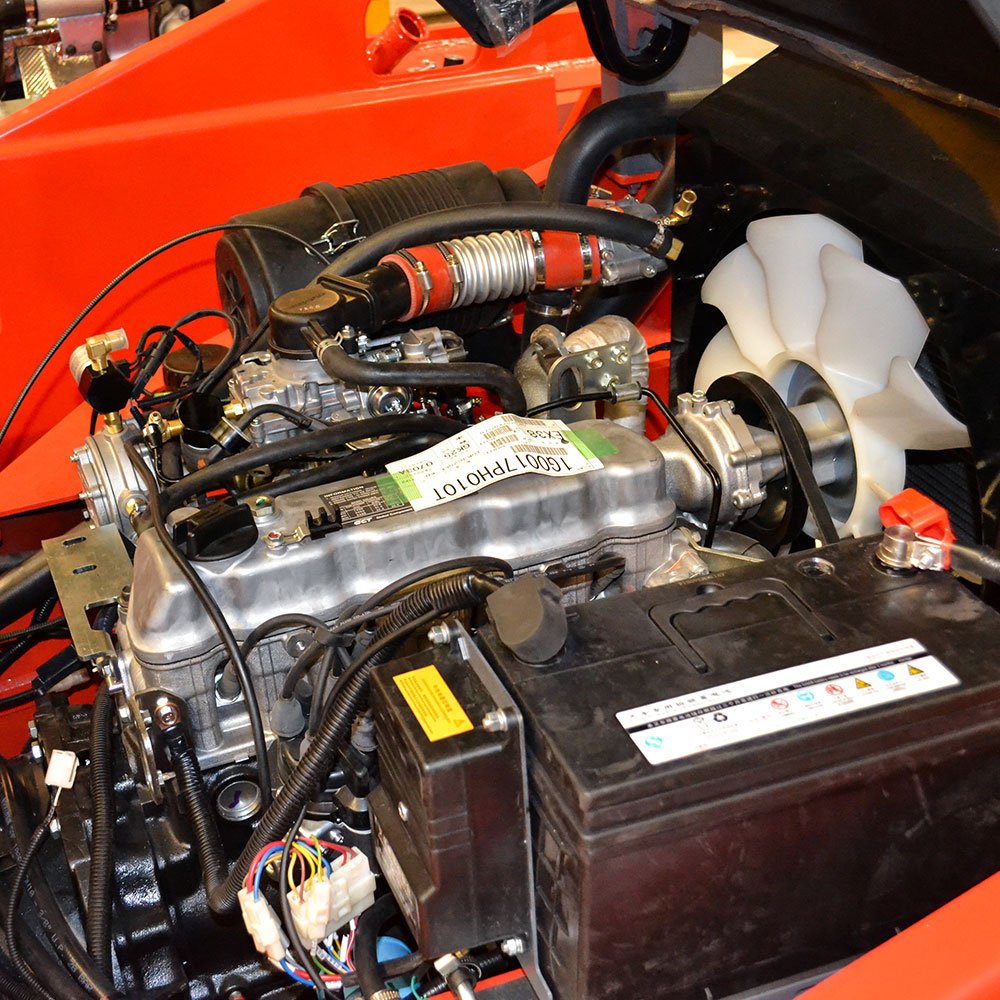

Powerful Diesel Engine

Equipped with reliable internal combustion engines delivering strong torque for heavy-duty operations.

Excellent Stability

Counterbalanced structure ensures safe lifting and transportation of heavy materials.

High Lifting Capacity

Standard lifting height reaches 3000mm, suitable for warehouse stacking and industrial applications.

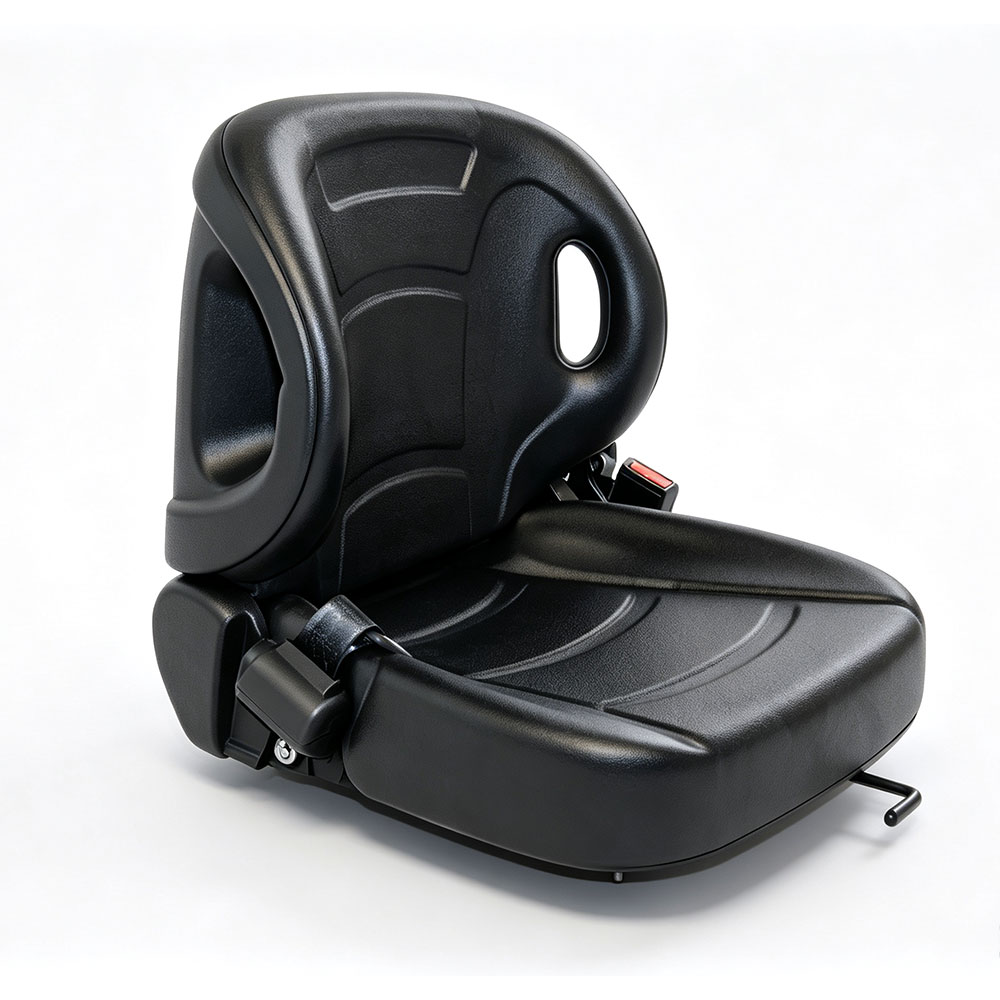

Comfortable Operation

Ergonomic sit-on driving design reduces operator fatigue during long working periods.

Strong Traction Ability

Pneumatic tires and powerful drivetrain provide excellent performance on different surfaces.

Flexible Configuration

Available with standard, extended wheelbase, and adjustable wheelbase versions.

Easy Maintenance

Reliable mechanical structure simplifies maintenance and improves service life.

Product Advantages

✓

Suitable for warehouses, factories, ports, logistics centers, and construction sites.

✓

Strong diesel power system supports intensive industrial operations.

✓

Stable lifting performance with 3000mm standard lifting height.

✓

Low center of gravity design improves safety during heavy load transportation.

✓

High-quality components ensure long service life and reliability.

✓

Multiple models meet different industrial handling requirements.

Video

Applications

Warehouses

Ideal for pallet stacking, loading, unloading, and internal material transportation.

Manufacturing Plants

Suitable for moving raw materials, components, and finished products.

Logistics Centers

Provides efficient handling solutions for distribution and transportation operations.

Construction Sites

Strong traction and durability support outdoor heavy-duty material handling.

Gallerry

K Series 3-4 Ton Diesel Counterbalanced Forklift Truck

Q: What is our factory product range?

A: We specialize in manufacturing material handling equipment, including forklifts, stackers, hydraulic lift tables, and manual pallet trucks, providing reliable solutions for warehouses, logistics centers, and industrial applications.

Q:How about sample policy?

Q: How to order?

A: Please send us your purchase order by email, or contact us via WhatsApp or telephone. You can also request a Proforma Invoice from us to proceed with your order.

Q: What are the payment terms for sample cost and order amount?

A: We accept the payment sent by West Union, D/P,D/A,T/T or L/C at so on
