1500kg 1.5Ton Electric Stand-on Pallet Stacker

Capacity: 1500kg
Drive Type: Electric
Operation Type: Stand-on
Fork Length: 2050mm
Max. Fork Height: 1500mm
Overall Width : 820mm
Fork Size: 60/180/1300mm

Key attributes
Price	Action
Fork Length	1150mm
Fork Width	550mm
Loading Capacity	2.0T/3T/5T

Choose quantity

Request A Quote

Key attributes

Specification	CDD15	CDD15-ST
Operation Type	Stand-on	Stand-on
Rated Capacity	1500kg	1500kg
Load Center	500mm	500mm
Weight (Including Battery)	600±30kg	650±30kg
Max. Mast Lift Height	2980mm	2980mm
Mast Lift Height	2500mm	2500mm
Free Lift Height	200mm	200mm
Fork Length	2050mm	2050mm

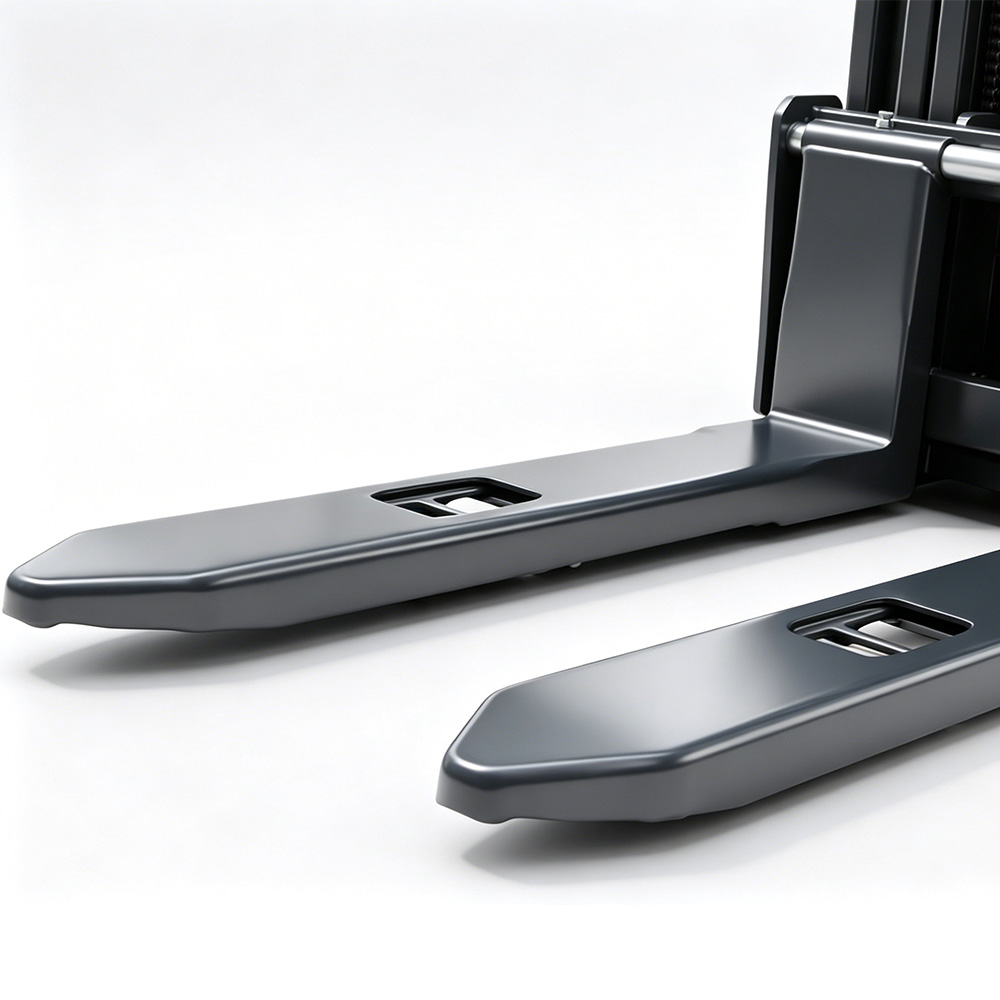

Fork Size	60 × 180 × 1300mm	60 × 180 × 1300mm
Travel Speed	3.7 / 4.0 km/h	3.7 / 4.0 km/h
Lifting Speed	0.08 / 0.135 m/s	0.08 / 0.135 m/s
Drive Motor	2.2kW	2.2kW
Lift Motor	0.8kW	0.8kW
Battery	48V / 35.8Ah	48V / 35.8Ah
Brake System	Electric	Electric
Noise Level	74 dB(A)	74 dB(A)

Description

1500kg 1.5Ton Electric Stand-on Stacker

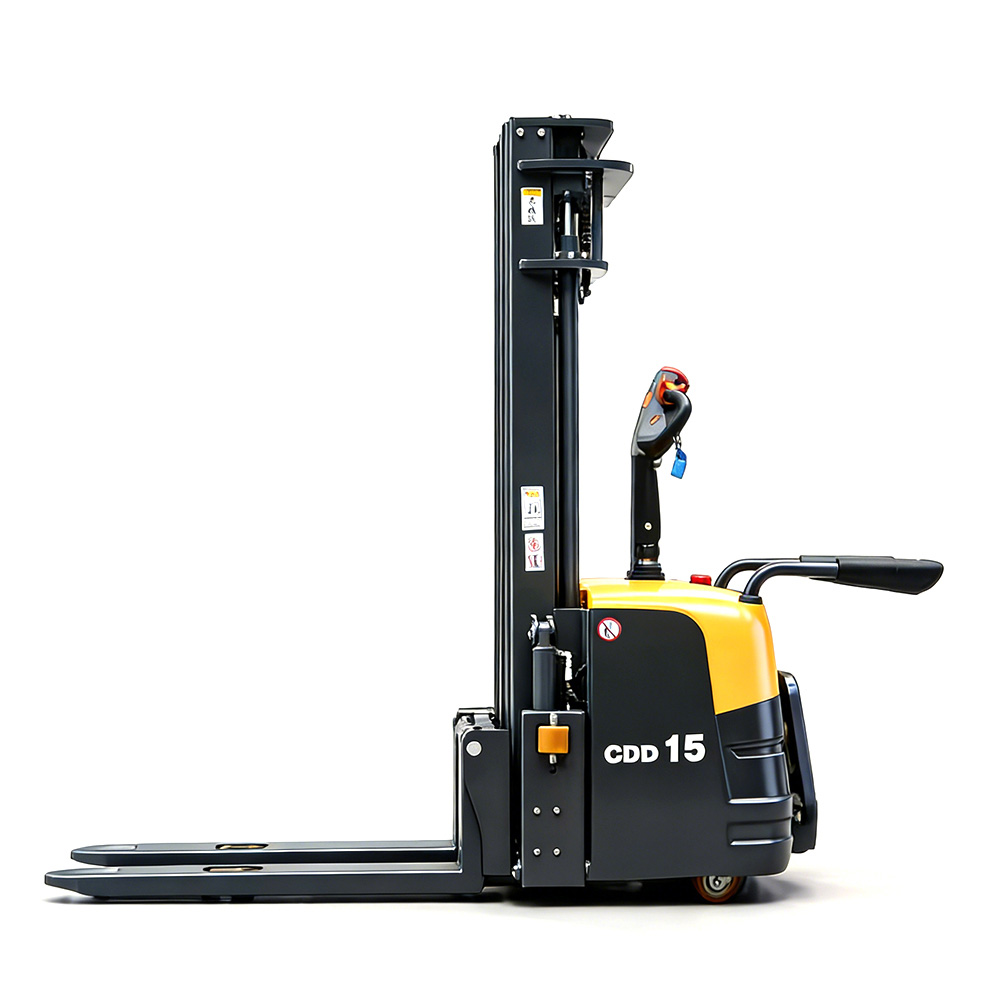

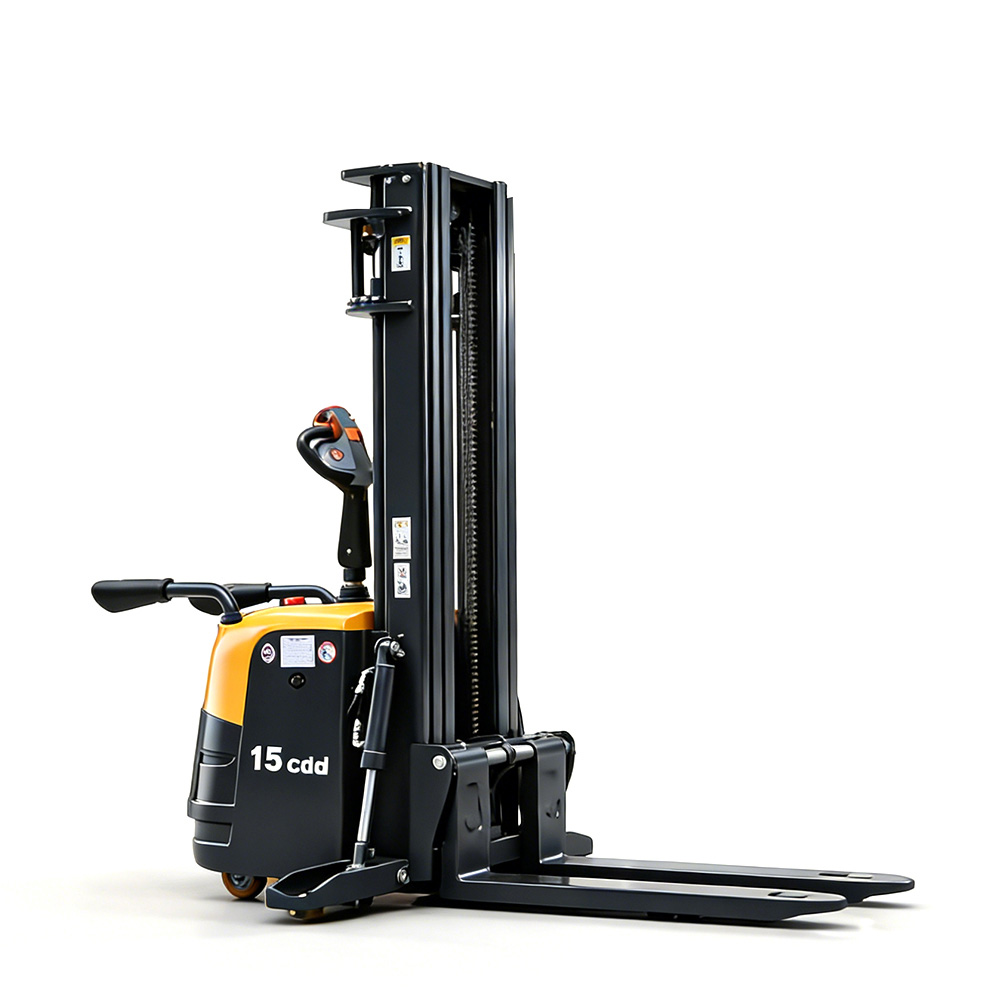

CDD15 1.5 Ton Electric Stand-on Pallet Stacker

The CDD15 Electric Stand-on Pallet Stacker is a high-performance warehouse material handling solution designed for intensive pallet transportation and stacking operations. Featuring an ergonomic stand-on platform, electric driving system, and powerful hydraulic lifting mechanism, it delivers higher productivity, lower operator fatigue, and superior handling efficiency compared with conventional walk-behind stackers.

Designed for warehouses, logistics centers, manufacturing plants, supermarkets, cold storage facilities, and distribution centers, the CDD15 offers a 1500kg rated capacity and lifting heights up to 2980mm. Its compact body, small turning radius, and excellent visibility allow operators to work efficiently in narrow aisles while maximizing storage capacity.

Equipped with a 48V high-efficiency battery system, powerful DC drive motor, maintenance-friendly electric brake, and premium polyurethane wheels, the CDD15 delivers smooth acceleration, stable lifting, low operating noise, and excellent maneuverability. It is an ideal solution for businesses seeking reliable, energy-efficient, and cost-effective warehouse equipment.

Features

Key Features

Ergonomic Stand-on Platform

Comfortable riding platform reduces operator fatigue during long-distance transportation while increasing daily working efficiency.

Powerful Electric Drive

Equipped with a 2.2kW DC drive motor for smooth acceleration, excellent traction, and reliable operation under full load.

Efficient Hydraulic Lifting

The 0.8kW hydraulic lifting motor provides stable lifting, precise positioning, and smooth lowering performance.

Compact Turning Radius

With a turning radius of only 1600mm, the stacker easily operates in narrow warehouse aisles and confined spaces.

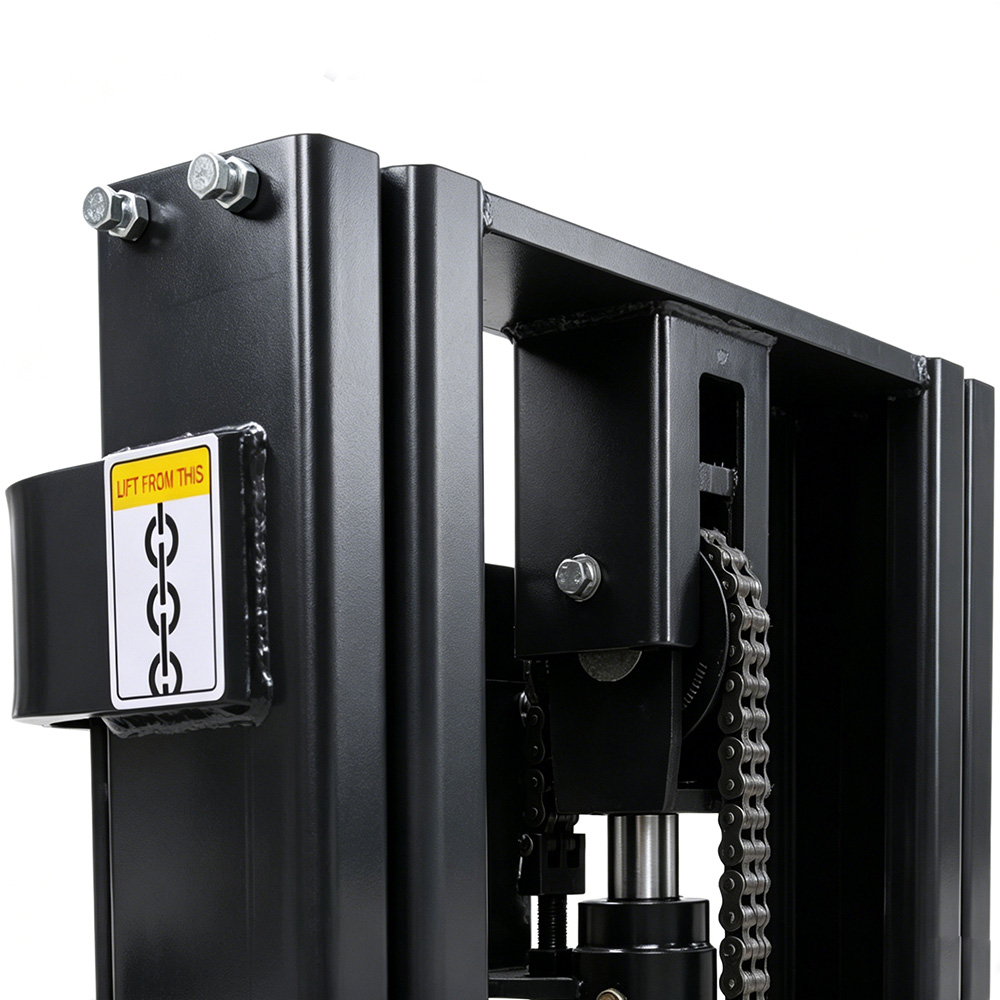

Heavy-Duty Mast

Robust mast construction provides outstanding lifting stability, reduced vibration, and excellent load visibility.

Low Maintenance Design

Premium electrical components, electric braking system, and durable PU wheels minimize maintenance requirements.

Product Advantages

✓ 1500kg heavy-duty load capacity for warehouse pallet handling.
✓ Stand-on driving design improves transportation efficiency over long distances.
✓ Maximum mast lifting height up to 2980mm for medium and high shelving.
✓ Electric brake system offers fast response and enhanced operational safety.
✓ Maintenance-free polyurethane wheels ensure smooth, quiet operation.
✓ Excellent climbing ability with up to 10% gradient (unloaded).
✓ Compact chassis maximizes warehouse storage utilization.
✓ Ideal for continuous daily warehouse operations and logistics applications.

Video

Applications

Warehouses

Efficient pallet stacking, inventory management, and rack storage operations.

Logistics Centers

Fast loading, unloading, sorting, and transportation of palletized goods.

Manufacturing Plants

Ideal for transferring materials between production lines and storage areas.

Retail & Cold Storage

Suitable for supermarkets, wholesale warehouses, food processing plants, and cold chain logistics.

Gallerry

1500kg 1.5Ton Electric Stand-on Pallet Stacker
