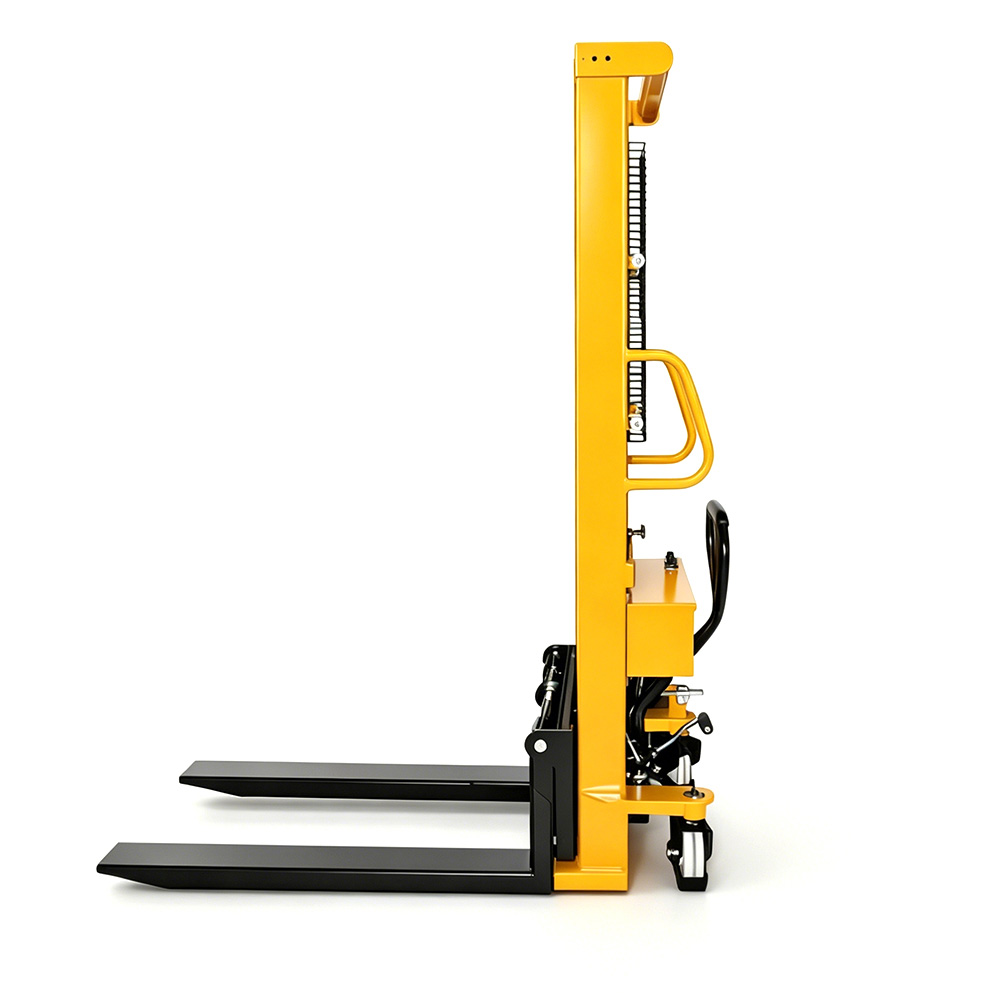

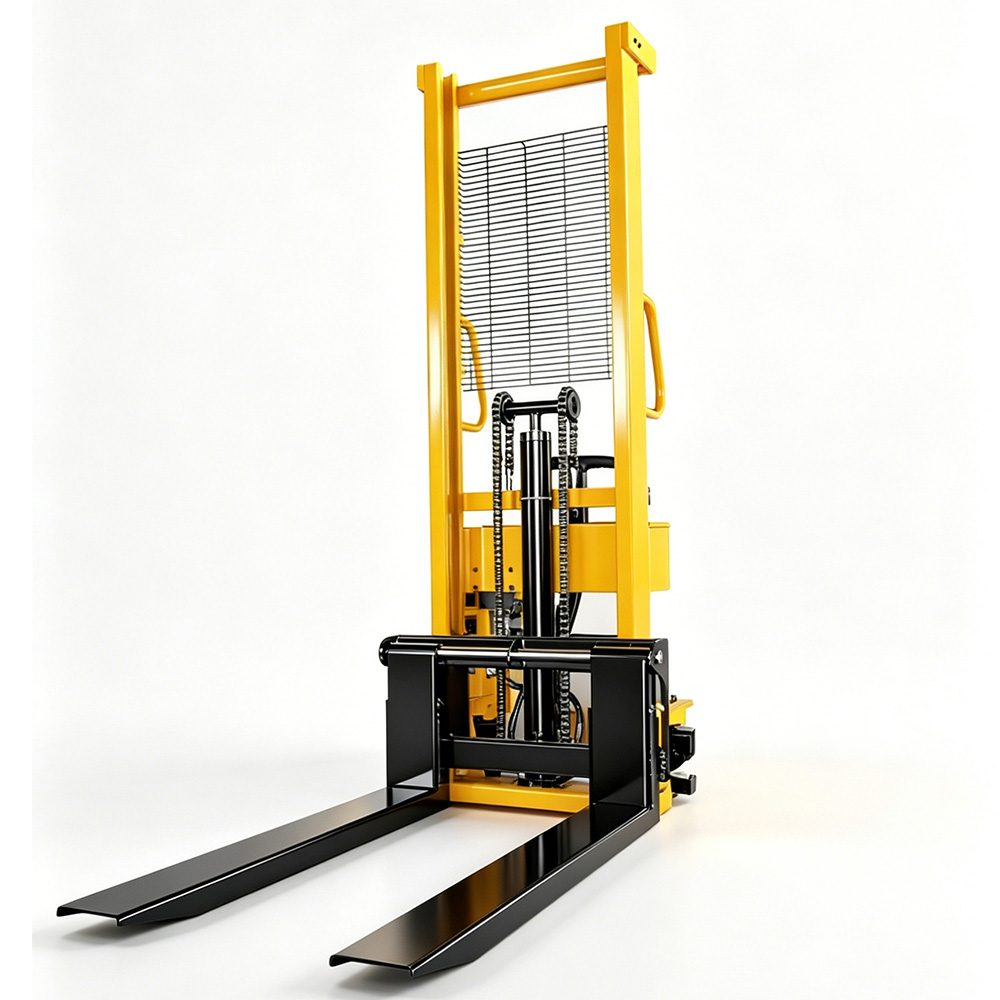

2000kg 2ton European C-Shaped Steel Electric Hydraulic Stacker

Rated Capacity: 2000kg
Lifting Height : 1600mm /2000mm /3000mm
Fork Length :1150mm
Fork Width :150mm
Fork Width Adjustment :300–740mm

Key attributes
Price	Action
Fork Length	1150mm
Fork Width	550mm
Loading Capacity	2.0T/3T/5T

Choose quantity

Request A Quote

Key attributes

Specification	Value
Rated Capacity	2000kg
Lifting Height	1600 / 2000 / 3000mm
Fork Length	1150mm
Fork Width	150mm
Fork Width Adjustment	300–740mm
Minimum Ground Clearance	75mm
Steering Wheel	180 × 50mm
Load Wheel	74 × 70mm
Battery	Tianneng Lead-acid 24V / 20Ah
Motor Power	0.8kW
Column Steel	120 × 50 × 6mm
Overall Dimensions (L × W × H)	1720 × 740 × 2045mm

Description

2000kg European C-Shaped Steel Electric Hydraulic Stacker

The 2000kg European C-Shaped Steel Electric Hydraulic Stacker is a compact, heavy-duty material handling solution engineered for warehouses, factories, distribution centers, supermarkets, and logistics facilities. Designed with a reinforced European-style C-shaped steel mast, this stacker delivers excellent lifting stability, high structural strength, and reliable performance for demanding pallet handling applications.

Equipped with an efficient 0.8kW electric hydraulic lifting motor, the stacker provides smooth and effortless lifting while the operator manually controls the travel direction. Compared with traditional manual stackers, electric lifting greatly reduces labor intensity and significantly improves productivity during pallet stacking, shelf loading, truck loading, and warehouse material transfer.

Powered by a reliable 24V/20Ah Tianneng lead-acid battery, this electric stacker offers stable power output, long operating time, and easy maintenance. Multiple lifting heights of 1600mm, 2000mm, and 3000mm make it suitable for a wide range of warehouse shelving systems and pallet handling tasks while maintaining excellent safety and operational efficiency.

Features

Heavy-Duty European Mast

Reinforced 120×50×6mm C-shaped steel mast provides superior rigidity, excellent stability, and long service life under heavy loads.

Electric Hydraulic Lifting

High-efficiency 0.8kW hydraulic power unit delivers smooth, stable, and low-noise lifting performance.

2000kg Capacity

Designed for heavy pallet handling, warehouse stacking, and industrial material transportation.

Adjustable Fork Width

Fork spacing adjusts from 300mm to 740mm, compatible with various pallet sizes.

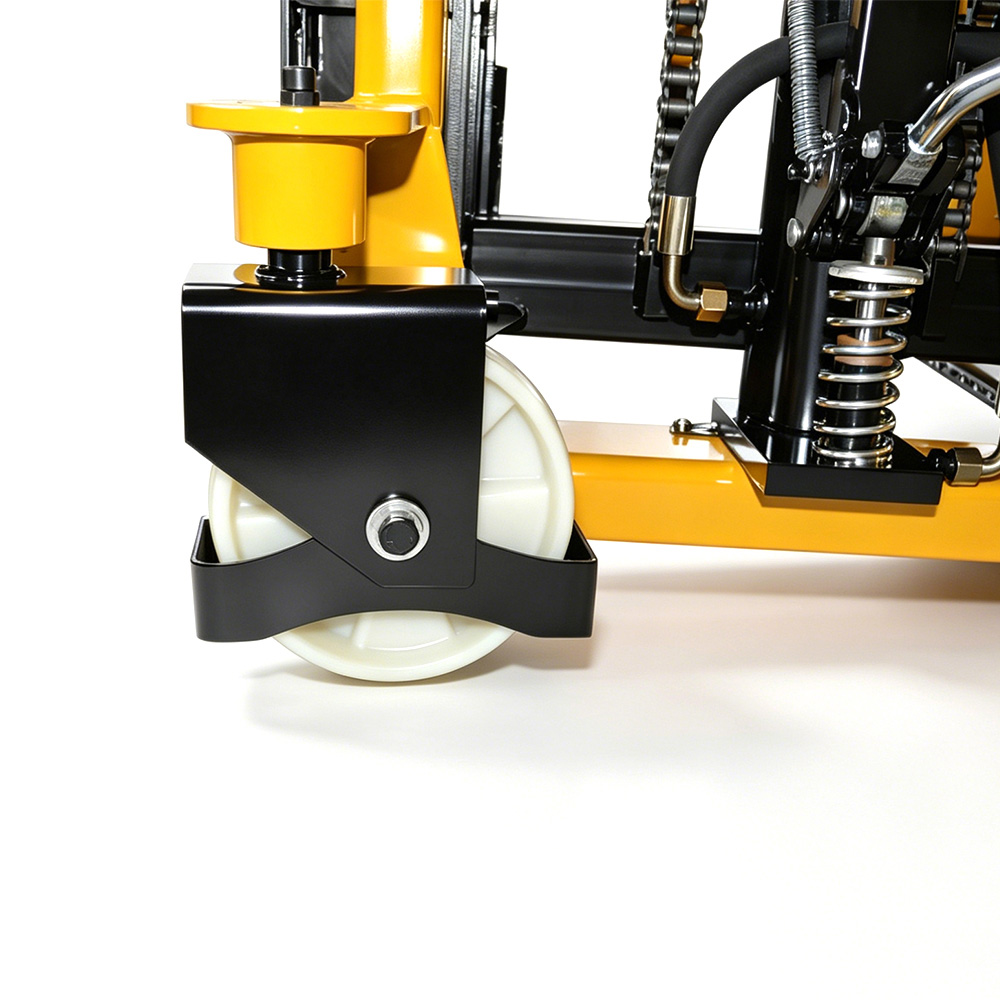

Durable PU Wheels

High-quality steering and load wheels provide quiet movement, excellent wear resistance, and floor protection.

Compact Design

Slim body allows easy operation inside narrow warehouse aisles while maximizing storage efficiency.

Product Advantages

✓ Heavy-duty 2000kg lifting capacity for industrial applications.
✓ Optional lifting heights of 1600mm, 2000mm, and 3000mm.
✓ Electric lifting significantly reduces operator fatigue and improves efficiency.
✓ Adjustable forks fit standard European and industrial pallets.
✓ Compact footprint ideal for narrow aisles and confined warehouse spaces.
✓ Reliable battery-powered hydraulic system with low maintenance requirements.
✓ Stable mast design improves lifting safety and load stability.
✓ Cost-effective alternative to full electric stackers for medium-duty operations.

Video

Applications

Warehouse Storage

Efficient pallet stacking, shelf replenishment, inventory handling, and warehouse organization.

Manufacturing Plants

Moving raw materials, finished products, and production components between workstations.

Distribution Centers

Fast loading, unloading, pallet transfer, and warehouse logistics operations.

Retail & Supermarkets

Ideal for stock replenishment, warehouse storage, and goods handling in retail environments.

Gallerry

2000kg European C-Shaped Steel Electric Hydraulic Stacker

2000kg 2ton European C-Shaped Steel Electric Hydraulic Stacker

Q: What is our factory product range?

A: We specialize in manufacturing material handling equipment, including forklifts, stackers, hydraulic lift tables, and manual pallet trucks, providing reliable solutions for warehouses, logistics centers, and industrial applications.

Q:How about sample policy?

Q: How to order?

A: Please send us your purchase order by email, or contact us via WhatsApp or telephone. You can also request a Proforma Invoice from us to proceed with your order.

Q: What are the payment terms for sample cost and order amount?

A: We accept the payment sent by West Union, D/P,D/A,T/T or L/C at so on
